Plastics and Injection Molding Principles

Understanding the fundamental concepts that govern the behavior of materials in injection molding processes.

Material Science Fundamentals

The injection molding process begins with a thorough understanding of polymeric materials. Thermoplastic polymers, which can be melted and reshaped repeatedly, form the foundation of most injection molding applications. These materials exhibit unique rheological properties that determine their flow behavior under different temperature and pressure conditions.injection molding.

Key material properties include melt flow index (MFI), viscosity, thermal conductivity, and shrinkage rate. These characteristics directly influence processing parameters in injection molding and ultimately affect the quality of the final part. Proper material selection is critical, as each polymer has distinct advantages and limitations based on chemical composition and molecular structure.

Additives play a crucial role in modifying polymer properties for specific injection molding applications. Fillers like glass fibers enhance strength and dimensional stability, while plasticizers improve flexibility. Colorants, UV stabilizers, and flame retardants are incorporated to meet aesthetic and performance requirements.

The Injection Molding Cycle

A complete injection molding cycle consists of several sequential stages, each critical to producing high-quality parts. The process begins with material feeding, where plastic pellets are introduced into the machine's hopper. These pellets travel through a heated barrel, gradually melting due to both mechanical shear and thermal energy – a fundamental aspect of any injection molding operation.

Once molten, the plastic is injected into a closed mold cavity under high pressure. This filling phase requires precise control to ensure complete cavity penetration without excessive pressure that could cause flash or mold damage. Following injection, packing pressure is applied to compensate for material shrinkage as the plastic begins to cool and solidify.

After sufficient cooling, the mold opens, and the part is ejected. The mold then closes again, completing the cycle. Cycle time optimization is essential in injection molding for maximizing productivity while maintaining part quality, as each stage must be precisely timed to avoid defects.

Plastic pellets and injection molding material samples

Key Principles Governing Injection Molding

Thermal Dynamics

Heat transfer during melting, cooling, and solidification directly impacts material properties and part quality in injection molding processes.

Fluid Mechanics

Understanding polymer flow behavior in channels and cavities is essential for proper mold design and injection molding parameter setting.

Shrinkage & Warpage

Predicting and compensating for dimensional changes during cooling is critical for achieving precise tolerances in injection molding.

Injection Molding Process Technologies

Advanced techniques and methodologies that enhance precision, efficiency, and capability in modern injection molding operations.

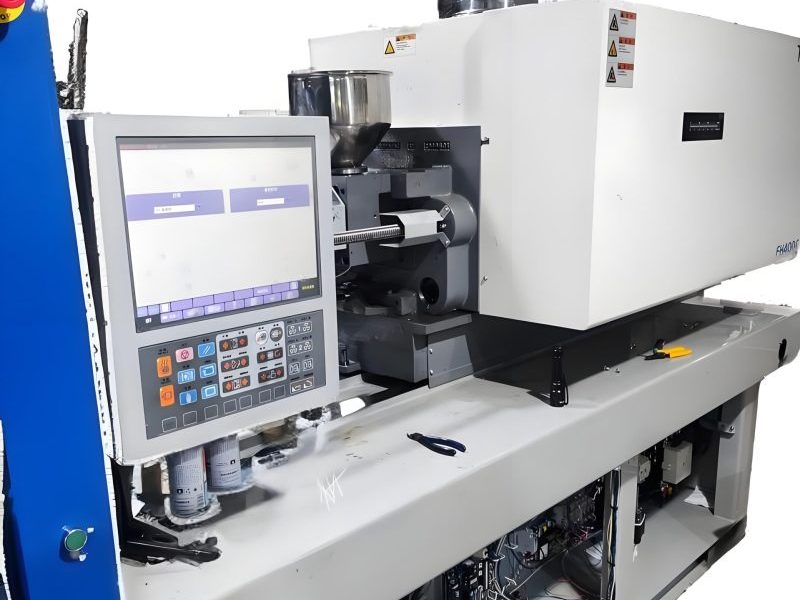

Modern injection molding machine with advanced controls

Machine Technology Evolution

Modern injection molding machines represent the pinnacle of manufacturing technology, integrating advanced hydraulics, precise temperature control systems, and sophisticated computerized controls. These machines range in clamping force from a few tons for micro-molding applications to thousands of tons for large-part production.

Electric and hybrid injection molding machines have revolutionized energy efficiency while providing exceptional repeatability. Servo-driven systems offer precise control over injection speed, pressure, and clamping force, resulting in consistent part quality and reduced scrap rates.

Key Machine Components

  • High-precision injection units with variable speed drives
  • Adaptive clamping systems with closed-loop feedback
  • Multi-zone temperature control with advanced sensors
  • Integrated robotic systems for automated part handling

Specialized Injection Molding Processes

Insert molding process showing metal inserts in plastic parts

Insert Molding

This injection molding technique incorporates pre-formed components (inserts) into the mold cavity before plastic injection. Inserts can be metallic or non-metallic, creating strong, integrated parts with enhanced functionality.

Common applications include threaded fasteners, electrical contacts, and structural reinforcements, eliminating secondary assembly operations.

Multi-material injection molding showing parts with different colors and materials

Multi-Material Molding

Advanced injection molding technology that combines multiple materials or colors in a single part. This process uses specialized molds and machines with multiple injection units to create parts with varying properties in different sections.

Applications range from soft-touch grips on tools to complex automotive components requiring different material characteristics.

Gas-assisted injection molding process diagram

Gas-Assisted Molding

This injection molding variant injects inert gas (typically nitrogen) into the molten plastic, creating hollow sections within the part. The gas pressure pushes material toward the mold walls, reducing wall thickness while maintaining structural integrity.

Benefits include reduced material usage, faster cooling, and improved surface finish on thick-walled components.

Micro-injection molding showing tiny precision parts

Micro Injection Molding

Specialized injection molding for producing extremely small parts, often weighing less than a gram. This process requires exceptional precision in machine control, mold design, and material handling to achieve micron-level tolerances.

Critical applications include medical devices, electronics, and micro-mechanical components where miniaturization is essential.

Liquid silicone rubber injection molding process

LSR Molding

Liquid Silicone Rubber injection molding processes heat-curing silicone materials into flexible, durable parts. This specialized injection molding technique requires precise temperature control and material handling due to the unique properties of silicone.

Applications benefit from silicone's heat resistance, flexibility, and biocompatibility in medical, automotive, and consumer products.

3D printed mold for rapid injection molding prototyping

Rapid Injection Molding

Combining modern mold-making techniques with streamlined processes, rapid injection molding delivers functional prototypes and low-volume production parts in significantly reduced lead times compared to traditional methods.

Often utilizing aluminum molds instead of steel, this approach balances cost, speed, and part quality for product development cycles.

Common Injection Molding Defects and Solutions

Comprehensive analysis of typical quality issues in injection molding and proven strategies to prevent and resolve them.

Despite advances in injection molding technology, defects can still occur due to material variations, machine settings, mold design issues, or process inconsistencies. Early detection and systematic troubleshooting are essential to maintaining quality and productivity in injection molding operations.

Defect Prevention Framework

Machine Calibration

Regular maintenance and calibration ensure consistent performance

Material Testing

Verify material properties before injection molding production

Process Monitoring

Real-time data collection during injection molding cycles

Quality Checks

Statistical process control for injection molding outputs

Flash

Excess plastic that escapes between mold halves or around inserts, creating thin, unwanted projections.

Causes:

  • • Insufficient clamping force
  • • Mold misalignment or wear
  • • Excessive injection pressure
  • • Improper venting in mold design

Solutions:

  • • Increase clamping pressure
  • • Inspect and repair mold surfaces
  • • Reduce injection pressure and speed
  • • Improve mold venting for better injection molding results

Sink Marks

Depressions or indentations on the surface of injection molding parts, typically occurring in thicker sections.

Causes:

  • • Inadequate packing pressure or time
  • • Uneven wall thickness in part design
  • • Excessive melt temperature
  • • Rapid cooling of thin sections

Solutions:

  • • Increase packing pressure and time
  • • Modify design for more uniform wall thickness
  • • Optimize cooling system in thick areas
  • • Adjust injection molding hold pressure profile

Warpage

Distortion of the part from its intended shape after ejection from the injection molding mold.

Causes:

  • • Uneven cooling rates across the part
  • • Residual stresses from inconsistent flow
  • • Non-uniform wall thickness
  • • Incorrect ejection timing or method

Solutions:

  • • Optimize cooling channel design
  • • Adjust packing pressure and cooling time
  • • Improve part design for uniform thickness
  • • Use proper ejection techniques in injection molding

Short Shots

Incomplete filling of the mold cavity, resulting in parts that lack material in certain areas.

Causes:

  • • Insufficient injection pressure or volume
  • • Material viscosity too high
  • • Blocked flow paths or gates
  • • Inadequate venting causing air traps

Solutions:

  • • Increase injection pressure and speed
  • • Raise melt temperature to reduce viscosity
  • • Check and clean mold gates and runners
  • • Improve mold venting for complete injection molding filling

Burn Marks

Dark discoloration or charring on the surface of injection molding parts, often appearing in remote sections of the mold.

Causes:

  • • Trapped air igniting due to compression
  • • Excessive melt temperature
  • • Overheated material in the injection unit
  • • Slow filling of thin sections

Solutions:

  • • Improve mold venting to release trapped air
  • • Reduce melt and barrel temperatures
  • • Increase injection speed in problematic areas
  • • Check for material degradation in injection molding process

Flow Lines

Visible lines or patterns on the part surface indicating the flow path of molten plastic during injection molding.

Causes:

Solutions:

Systematic Troubleshooting Approach

Effective resolution of injection molding defects requires a structured methodology that considers all aspects of the process. The following steps provide a framework for identifying and correcting issues:

1

Identify Defect

Document and categorize the specific injection molding defect

2

Collect Data

Gather process parameters and material information

3

Analyze Causes

Evaluate potential sources in injection molding process

4

Implement Changes

Make targeted adjustments to address root causes

5

Verify Results

Confirm defect resolution and process stability

Precision and Special Requirements Injection Molding

Advanced techniques for achieving exceptional precision and meeting specialized performance requirements in injection molding applications.

Micron-Level Precision Molding

Precision injection molding pushes the boundaries of manufacturing capability, achieving tolerances as tight as ±0.001mm for critical components. This level of precision requires a holistic approach encompassing specialized machinery, advanced mold-making techniques, and rigorous process control.

In precision injection molding, machine stability is paramount. High-end machines with minimal deflection under load, advanced servo-control systems, and exceptional repeatability form the foundation. These machines maintain precise control over temperature, pressure, and speed throughout the injection cycle.

Key Requirements for Precision Injection Molding

  • Mold bases with high rigidity and temperature stability, often using pre-hardened or hardened tool steels
  • Precision-ground components with tight dimensional control and superior surface finishes
  • Advanced temperature control systems with ±0.1°C accuracy for consistent melt and mold conditions
  • Environmental controls for temperature, humidity, and vibration in the injection molding production area

Industries such as medical device manufacturing, aerospace, and microelectronics rely heavily on precision injection molding to produce components that meet exacting specifications for fit, function, and performance in critical applications.

Precision injection molding components under magnification

Tolerance Capabilities

Achieving ±0.001mm tolerances for critical injection molding applications

Specialized Injection Molding Applications

Medical device components made with biocompatible materials
Medical Applications

Biocompatible Molding

Injection molding for medical devices demands strict adherence to biocompatibility standards, cleanroom production environments, and traceability throughout the manufacturing process.

Materials must meet USP Class VI or ISO 10993 requirements, with processes validated to ensure sterility and prevent contamination in critical healthcare applications.

High-temperature resistant plastic components for automotive underhood applications
Automotive & Industrial

High-Temperature Resistant Molding

Specialized engineering resins enable injection molding of components that withstand extreme temperatures in automotive underhood, industrial, and aerospace applications.

Materials like PEEK, PEI, and LCP retain mechanical properties at elevated temperatures, requiring specialized processing parameters and mold designs.

Electrical components with EMI shielding and precise dimensional control
Electronics

Electrical & Electronic Molding

Injection molding for electronic components requires exceptional dimensional stability, controlled conductivity, and protection against electromagnetic interference (EMI).

Specialized materials with conductive fillers, precise mold grounding, and cleanroom conditions ensure reliable performance in sensitive electronic applications.

Meeting Special Performance Requirements

Enhanced Mechanical Properties

Injection molding processes can be optimized to produce parts with exceptional strength, impact resistance, or flexibility through material selection and processing techniques.

  • Fiber-reinforced composites for increased strength-to-weight ratio
  • Impact modifiers for improved toughness in cold environments
  • Controlled orientation for directional strength properties

Chemical and Environmental Resistance

Specialized polymers enable injection molding of parts that withstand harsh chemicals, UV exposure, and extreme environmental conditions while maintaining performance.

Electrical Performance

Injection molding can produce components with precisely controlled electrical properties, from insulators with high dielectric strength to conductive parts for EMI shielding.

  • Static-dissipative materials for electronics manufacturing
  • High-voltage insulation for electrical components
  • Thermally conductive plastics for heat management

Aesthetic and Surface Requirements

Advanced injection molding techniques can achieve Class A surfaces, special textures, and consistent color matching for visible components and consumer products.

Injection Molding Energy-Saving and Green Manufacturing

Sustainable practices, energy efficiency, and environmentally responsible approaches to modern injection molding operations.

Energy-efficient injection molding facility with solar panels

Energy Efficiency in Injection Molding

The injection molding industry has made significant strides in reducing energy consumption through technological advancements and process optimization. Energy-efficient practices not only reduce environmental impact but also lower operational costs, creating a win-win scenario for manufacturers and the planet.

Machine Efficiency Improvements

Modern injection molding machines incorporate servo-electric drives and variable-frequency motors that reduce energy consumption by up to 50% compared to traditional hydraulic systems. These machines only consume power when performing work, rather than maintaining constant pressure.

Heat Recovery Systems

Innovative systems capture waste heat from injection molding machine barrels and hydraulic systems, repurposing it for facility heating or pre-heating material. This reduces overall energy requirements while improving process stability.

Intelligent Process Scheduling

Optimizing production schedules minimizes machine idle time and enables efficient energy usage patterns. Grouping similar injection molding jobs reduces changeover times and maintains more stable operating temperatures.

Sustainable Materials in Injection Molding

Recycled Content Integration

Injection molding processes are increasingly incorporating post-consumer and post-industrial recycled materials without sacrificing performance. Advanced compounding techniques improve the consistency and properties of recycled resins.

Proper material selection and processing adjustments allow recycled content to be used in everything from non-visible structural components to consumer-facing products in injection molding applications.

Biodegradable and Bio-Based Polymers

The development of bio-based and biodegradable materials has expanded options for sustainable injection molding. These materials are derived from renewable resources like corn starch, sugarcane, and vegetable oils.

While requiring specialized processing parameters in injection molding, these materials offer end-of-life advantages for single-use applications and reduce reliance on petroleum-based feedstocks.

Lightweighting and Material Reduction

Advanced design techniques for injection molding enable significant material reduction through薄壁设计, lattice structures, and optimized geometries without compromising strength or functionality.

Lightweighting reduces material consumption, lowers shipping costs, and decreases energy requirements throughout the product lifecycle beyond just the injection molding process.

Green Manufacturing Practices

Waste Reduction Strategies

Injection molding operations generate various waste streams that can be minimized or repurposed through effective management strategies:

  • Regrind integration: Processing and reusing injection molding runners, sprues, and scrap in production
  • Precision dosing and material handling to minimize spillage and contamination
  • Design for Manufacturability (DFM) to reduce scrap rates in injection molding production

Emissions Control and Reduction

Managing and reducing emissions is a critical aspect of green injection molding:

  • Advanced ventilation and filtration systems for volatile organic compound (VOC) control
  • Process optimization to reduce fume generation during injection molding
  • Alternative, low-emission materials and additives in injection molding formulations

Circular Economy in Injection Molding

The transition toward a circular economy is transforming injection molding practices, emphasizing product lifecycle management and closed-loop material flows:

Design for Recycling

Injection molding part design that facilitates material recovery

Closed-Loop Systems

Material recovery from end-of-life products

Extended Product Life

Durable injection molding designs for longer use

Product-as-a-Service

Manufacturer responsibility for product lifecycle

Injection Molding Process Optimization and Computer Simulation

Advanced computational tools and analytical methods for optimizing injection molding processes and predicting performance.

Computer-Aided Engineering for Injection Molding

Computer simulation has revolutionized injection molding by enabling virtual testing and optimization before physical mold construction. These powerful tools allow engineers to analyze and predict material behavior, flow patterns, cooling characteristics, and potential defects in a digital environment.

Injection molding simulation software uses sophisticated mathematical models to replicate the complex physics of molten plastic flow, heat transfer, and solidification. By inputting material properties, mold geometry, and process parameters, engineers can visualize how plastic fills the mold cavity and identify potential issues early in the development cycle.

Key Benefits of Injection Molding Simulation

  • Reduced development time through virtual testing
  • Lower costs by minimizing physical prototypes and mold rework
  • Improved part quality through optimized process parameters
  • Enhanced mold design with optimal gate placement and cooling
  • Better material selection based on predicted performance
Computer simulation of injection molding flow patterns

Flow Analysis

Predicting material flow behavior in injection molding cavities

Cooling Simulation

Optimizing thermal management for uniform cooling

Simulation Capabilities and Applications

Fill and Pack Analysis

Simulation of the filling phase predicts how molten plastic flows through the mold, identifying potential issues like air traps, weld lines, and uneven filling in injection molding processes.

Packing analysis optimizes pressure profiles to compensate for shrinkage, ensuring proper part density and minimizing post-molding defects in injection molding.

Cooling System Optimization

Simulation tools analyze heat transfer during cooling, helping design efficient cooling channel layouts that reduce cycle time while ensuring uniform cooling across the injection molding part.

Proper cooling system design minimizes warpage and residual stresses, critical factors in maintaining dimensional stability in injection molding.

Warpage Prediction and Compensation

Advanced simulation predicts how parts will distort during cooling and ejection, allowing engineers to modify mold design or process parameters to compensate in injection molding.

This capability reduces the need for costly mold modifications and iterative testing in injection molding production setup.

Process Optimization Methodologies

Statistical Process Control (SPC)

SPC involves monitoring and controlling injection molding processes through statistical analysis of critical parameters. By establishing control limits and continuously measuring key variables, manufacturers can detect and address variations before they result in defects.

In injection molding, SPC typically tracks variables such as melt temperature, injection pressure, hold time, and cooling temperature. Control charts visualize these measurements over time, highlighting trends and out-of-specification conditions.

Effective SPC implementation reduces process variability, improves consistency, and provides data-driven insights for continuous improvement in injection molding operations.

Design of Experiments (DOE)

DOE is a systematic methodology for optimizing injection molding processes by testing the effects of multiple variables simultaneously. Rather than changing one parameter at a time, DOE identifies interactions between variables and their combined impact on part quality.

For injection molding, typical factors analyzed in DOE include melt temperature, injection speed, packing pressure, and cooling time. The goal is to identify the optimal parameter settings that produce parts meeting all quality requirements.

DOE reduces the number of experiments needed to optimize injection molding processes, saving time and materials while providing a more comprehensive understanding of process behavior.

Integrated Process Optimization Workflow

1
Design and Simulation

Part and mold design with initial injection molding simulation to identify potential issues

2
Parameter Screening

Preliminary testing to identify critical injection molding process variables and their operating ranges

3
DOE Implementation

Systematic experimentation to optimize injection molding parameters and understand interactions

4
Validation and SPC Setup

Confirming optimal settings and establishing monitoring systems for injection molding production

5
Continuous Improvement

Using production data to refine injection molding processes and address emerging challenges

Injection Molding Production Automation and Intelligence

Smart manufacturing technologies, robotic integration, and data-driven systems transforming injection molding operations.

Automated injection molding cell with robots and smart monitoring

Robotic Automation in Injection Molding

Industrial robotics has become an integral part of modern injection molding operations, handling tasks ranging from simple part removal to complex assembly processes. Robotic systems improve efficiency, consistency, and safety while reducing labor costs in injection molding facilities.

Part Handling and Removal

Robots precisely remove parts from injection molding machines, ensuring consistent cycle times and preventing damage. Advanced vision systems enable robots to handle complex geometries and detect potential defects during removal.

Secondary Operations Integration

Robotic systems perform trimming, assembly, labeling, and inspection tasks inline with injection molding, eliminating the need for separate workstations and reducing handling.

Material Handling Automation

Automated systems manage resin supply, mixing, and drying processes for injection molding, ensuring material consistency and reducing waste through precise dosing and tracking.

Industry 4.0 and Smart Injection Molding

Connected Machines

Injection molding machines equipped with IoT sensors collect real-time data on performance, energy usage, and process parameters. This connectivity enables remote monitoring and data-driven decision making.

Machine-to-machine communication creates integrated production systems where injection molding cells coordinate with upstream and downstream processes for optimal flow.

Data Analytics and AI

Advanced analytics platforms process the vast amounts of data generated by injection molding operations, identifying patterns and predicting issues before they occur.

Artificial intelligence algorithms optimize injection molding parameters in real-time, adjust for material variations, and continuously improve process efficiency and part quality.

Smart Quality Control

Machine vision systems with AI capabilities perform 100% inspection of injection molding parts, detecting defects with greater accuracy and consistency than human inspectors.

These systems learn from data, improving over time and enabling predictive quality control that prevents defects in injection molding before they occur.

Benefits of Intelligent Injection Molding Systems

  • Increased Productivity

    Automated systems operate 24/7 with consistent performance, reducing cycle times and maximizing injection molding machine utilization.

  • Improved Quality

    Precision automation and real-time monitoring reduce variability in injection molding processes, resulting in higher quality parts with fewer defects.

  • Reduced Costs

    Lower labor requirements, reduced scrap, optimized energy usage, and predictive maintenance all contribute to lower injection molding production costs.

  • Enhanced Flexibility

    Programmable automation systems enable faster changeovers between injection molding jobs, supporting smaller batch sizes and greater product variety.

  • Improved Safety

    Automation reduces human interaction with hazardous areas of injection molding machines, minimizing workplace accidents and exposure to fumes.

  • Better Decision Making

    Data-driven insights from intelligent systems enable more informed decisions about injection molding process improvements, maintenance, and resource allocation.

The Future of Injection Molding Manufacturing

The continued evolution of automation, connectivity, and artificial intelligence promises to further transform injection molding, creating self-optimizing production systems that adapt to changing conditions in real-time. These smart injection molding facilities will deliver unprecedented levels of efficiency, quality, and sustainability while enabling greater customization and responsiveness to market demands.

Expert Injection Molding Consultation

Connect with our specialists to optimize your injection molding processes, resolve defects, and implement advanced technologies.

Why Work With Our Injection Molding Experts

Industry Experience

Our team brings decades of hands-on experience across all aspects of injection molding, from material science to advanced process optimization.

Technical Expertise

Specialized knowledge in the latest injection molding technologies, including precision molding, simulation, automation, and sustainable practices.

Problem-Solving Approach

We deliver practical, cost-effective solutions to complex injection molding challenges, focusing on measurable improvements in quality and efficiency.

Contact Information

  • 123 Manufacturing Blvd, Industry Park, CA 90210
  • +1 (555) 123-4567
  • experts@moldtechpro.com
Follow Us
